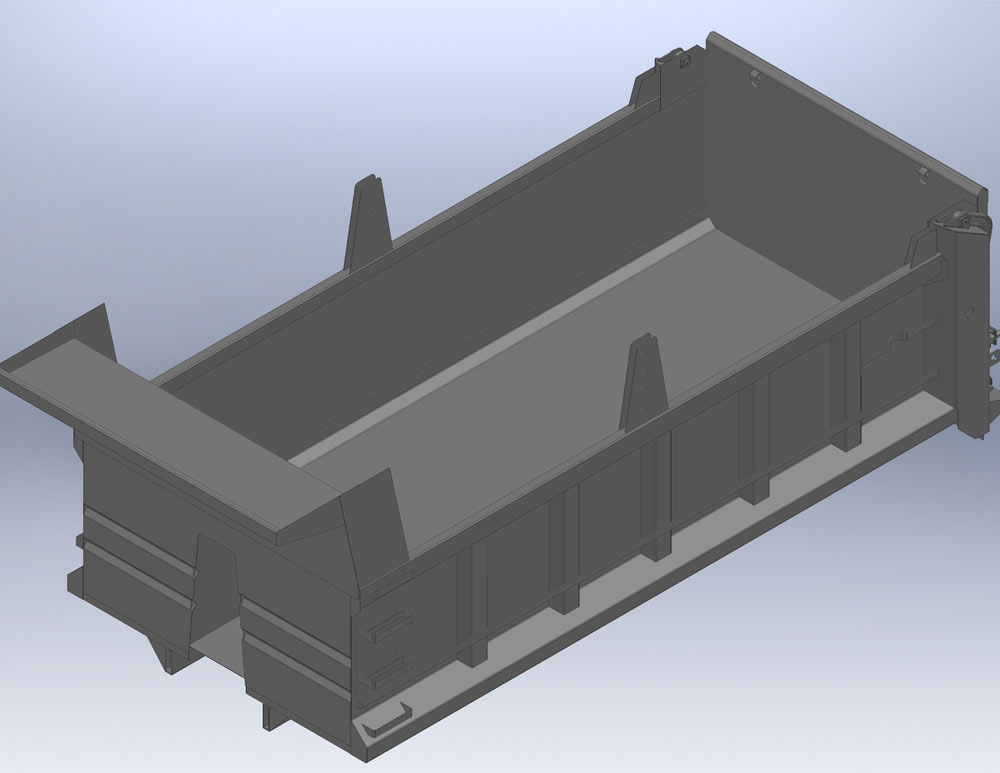

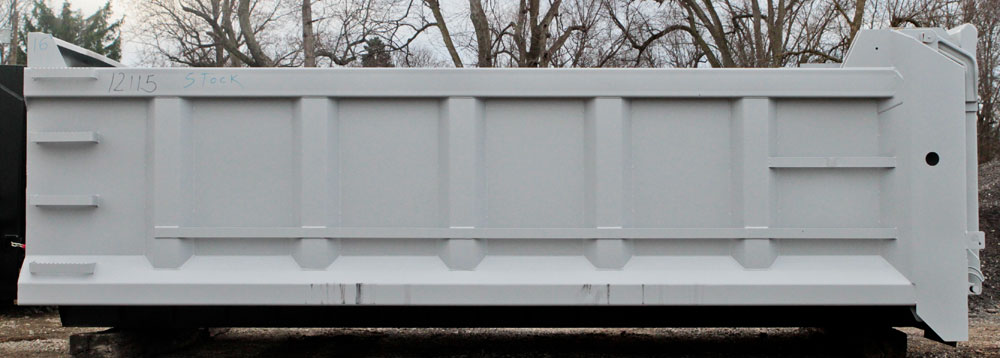

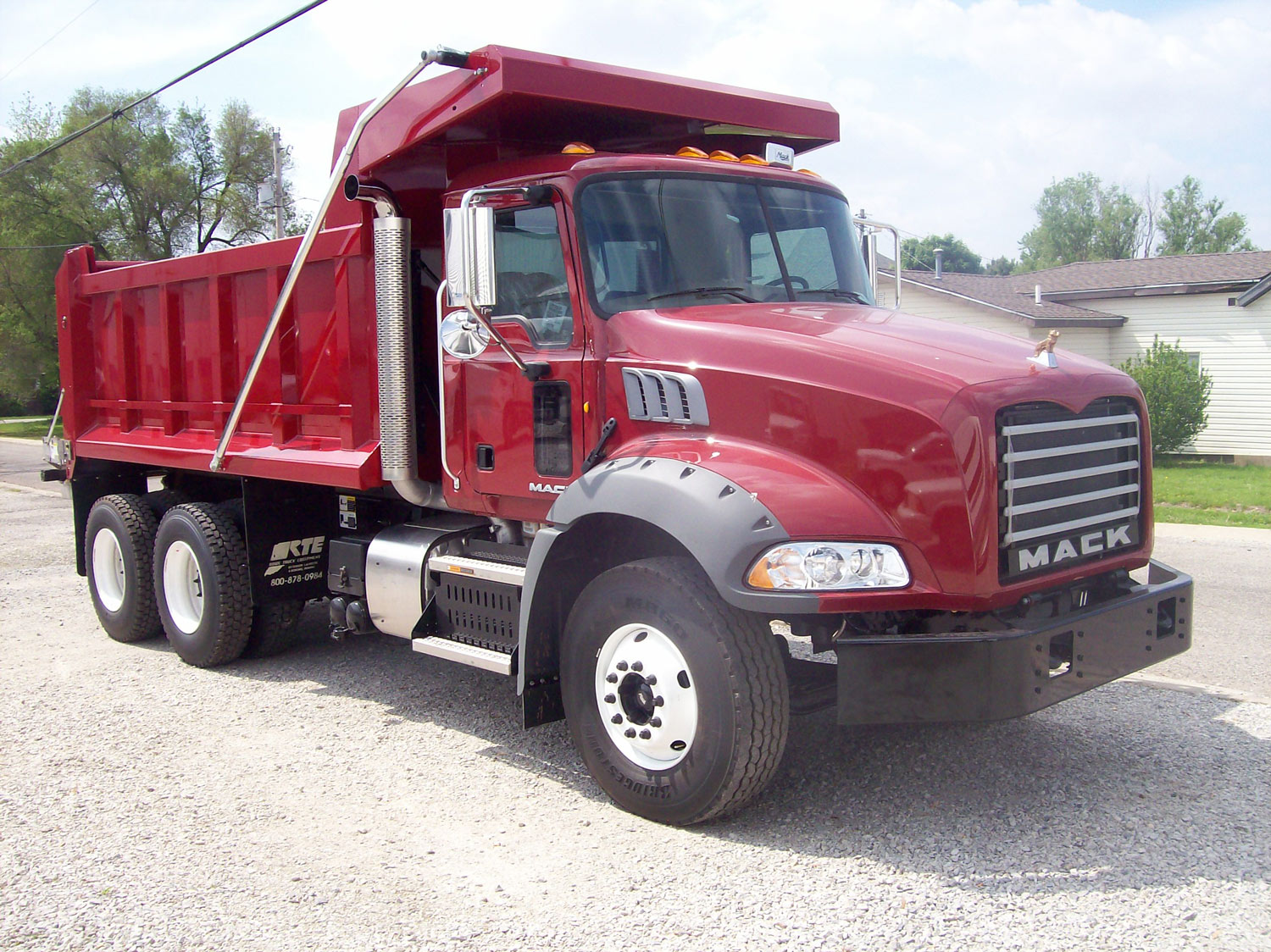

The solid performance of the Rowe American Dump Body DBA1000 has made this body the industry standard for many years. This is a body with classic looks, but don’t let that fool you; recent upgrades have resulted in a larger capacity without sacrificing weight considerations. The DBA1000 is the economical choice for owners and will provide many years of service. You won’t be disappointed.

Standard Features

  • 3/16” High Strength Low Alloy (HSLA) Grade 50 Steel Floor
  • 10 Ga. HSLA Tailgate, Side Walls, Front Bulkhead Sheet, and Hoist Tunnel “Dog House”
  • 44” Tall Side Walls with dirt shedding features
  • Traditional Vertical Wall Stiffeners
  • 4” x 6” x 3/16” rectangle tube top rail
  • 9-Panel Fully Boxed Heavy Duty Tailgate with 54” Inside Height
  • Heavy Duty Upper Tailgate Hinges with removable, greasable upper pins
  • Inside Cleanouts completely line around the inside body which provide easy material release. Less cleaning and maintenance time.
  • Inside and Outside Body Steps
  • In-cab controls, including Air Tailgate Latch valve, Air Shift PTO engage, feathering Air Dump Pump control, Console Tower
  • Air Operated Tailgate Latch and pneumatic cylinder
  • Oil Tank located inside Hoist Tunnel for protection while saving frame mounting space.
  • Hydraulic hoses, fittings, and valves
  • Tailgate Spreader Chains
  • Floor Understructure uses 7” C-Channel Main Rails internally reinforced and externally gusseted to full floor width I-beam crossmembers spaced at 11”
  • Comes with Zinc Rich Primer, the best on the market, or an optional Genesis Primer.
  • Choose between Custom Hoist and Hyva Hoist, Hoist sized to match your body and application.  7” Bore 4-stage Telescoping hoist, typical, additional sizes are available based on your needs.
  • Dump Pump sized to match your hoist, chassis, and application
  • Hoist Basket Cradle
  • Heavy Duty Rear Hinge with greasable pins
  • Standard Dump Body Light Package with Rubber Grommets includes 6” Oval Stop, Turn, Tail Lights (4 pc) and 2½” Round Red Side Marker Lights (2 pc) and wiring harness
  • Complete wiring harness customized for our dump body light package with additional leads for auxiliary lights
  • Body Props and Bed Guides, 1 each per side for extra safety and ease of operation
  • 1 Year Warranty on body
  • No other country produces the fine quality as true American Made products, Rowe Truck Equipment continues the tradition.

Optional Features

  • ¼” thick HSLA Steel for Floor, Tailgate, Side Wall, and Front Bulkhead sheet
  • Integrated or Standard Cab Shield to match the cab height and width on your chassis.
  • Quarter (15”), Half (27”), and Full (36”) Forward Projection Cab Shield
  • Electric Tarp Covering System built into the Integrated Cab Shield for clean, seamless look.
  • Body Steps Grab Handle to Cab Shield
  • Sloped Forward Tailgate.  Increases the control of load dumping and portioning.
  • 2 Slopes to choose from:  12” and 6” Forward Slope on 48” Wall Height
  • Barn Door Tailgate, double acting: Conventional Dump and Barn Door Swing Gate
  • Lay Flat Tailgate
  • Air Operated High Lift Tailgate
  • Coal Chute, up to 3
  • Spread Aprons.  Fully welded, bolt-on, and pin-on designs available
  • 6”, 8”, 10”, 12” lengths
  • Offset Front Corners to clear exhaust stacks mounted behind the cab
  • Trunnion Mounted Telescopic Hoist.  Chose from Mailhot Industries or Hyva.
  • Customize our Hoist Tunnel to match your existing hydraulic system
  • Underbody Hoists for body lengths 14’ and smaller.
  • RTE manufactures its own line of Underbody Sub-Frame Hoists including our robust Under Body Arm Hoist and Front Mount Telescopic Hoist.  Sub-frameless Scott Hoists and sub-frame Harsh Hoists are available.
  • Tread Brite aluminum fender covers
  • Body Vibrator
  • Pintle Hitches, air actuated
  • Custom Paint for that auto-showroom finish.
  • Polyurea coating
  • Side Board options include Single, Double, and Tapered.  You Choose Wood, Steel, Aluminum, or Poly Composite.
  • Rectangular Frame Mounted Oil Tanks with internal baffles, breather fill cap, and sight level indicator, and multiple port sizes and locations.
  • Additional Lights, such as Strobes or Oval Ambers, installed in the Cab Shield, Fender, or Rear Corner Post
  • Body Ladders.  You Chose 2 or 3-Rungs from Fixed, Removable, or Retractable styles
  • Shovel, Scraper, and Broom Holders
  • Window opening in Front Bulkhead Sheet
  • Body Tie-Down/Spreader Clips
